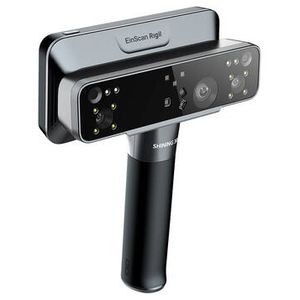

Afinia EinScan Rigil Tri-Mode Laser 3D Scanner

The EinScan Rigil Tri-Mode Laser 3D Scanner from Afinia features built-in computing - wireless connectivity - and hybrid light technology It delivers a fully integrated 3D scanning workflow with three operational modes - removing the usual trade-off between computing power and flexibility Offering volumetric accuracy of 004mm+006mm/m and geometric resolution up to 005mm - it ensures high-quality results Its three light sources - 19+19 crossed blue laser lines - 7 parallel blue laser lines - and infrared VCSEL work with two specialized camera and projector groups to provide versatile performance and efficiency for a wide range of object sizes and surface types

Features: Includes 6000mAh Batteries, High-Speed Scan & Processing Algorithms, 0.04+0.06mm/m Volumetric Accuracy, 6.4-inch Color Touchscreen, 2 Separate Groups | Cameras & Projectors, 32GB DDR5 RAM, 32GB eMMC & 1TB SSD ROM, 19+19 Crossed Laser Lines, 7 Parallel Laser Lines, 5MP Full Color Texture Scanning, 0.05mm High-Resolution

Scan Speed: 50 fps (Blue Light Mode)70 fps (Blue Light Mode)

Light Source: Laser + LED

Accuracy: ±0.06 mm (Laser)±0.04 mm (Rapid)

Working Distance: 6.7 to 21.7-inch / 170 to 550 mm

Image Resolution: 5 MP

File Formats: ASC - OBJ - PLY - STL - 3MF

System Connection: USB-C 3.0 / 3.1/3.2 Gen 1

Display: Yes: 6.4-inch Touchscreen

OS Compatibility: Windows 11 or Later

Memory Requirement: 64 GB

VRAM Requirement: 8 GB (Minimum)

Capacity: Removable 2-Cell: 6200 mAh

Operating Conditions: 14 to 104 degreesF / -10 to 40 degreesC

Certifications: CE - FCC - RoHS - WEEE

Dimensions: 9.2 x 7.1 x 2.9-inch / 233 x 180 x 72.8 mm

Weight: 1.9 lb / 870 g
