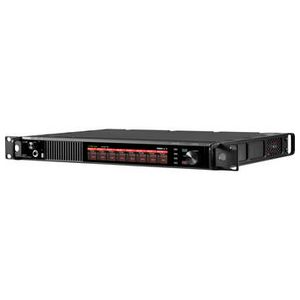

Shure ANX4-DC Multi-Channel Wireless Receiver (174

by Shure

1,220,076 points


Product Description

Experience flexible - high-tier - high-channel count wireless audio in a single - compact rack space with the Shure ANX4-DC - a wireless receiver designed to support up to 16 channels of Axient or 24 channels of ULX-D wireless audio With a scalable design intended to allow you to purchase the exact number of channels needed for your application (licenses sold separately) - ANX4 is highly versatileWhile the ANX4 itself ships without wireless channels - you can acquire channels via single- or four-channel incremental licenses - allowing you to build an optimal system Purchased channel licenses can be transferred between multiple ANX4 receivers via your ShureCloud account - enabling dynamic optimization of receivers for specific events on a per-situation basis The ANX4 can also be managed and controlled remotely via Shure Wireless Workbench The receiver supports all features from Axient and ULX-D systems - including ULX-Ds High-Density mode The ANX4 features Ethernet and Dante connectivity - four RF antenna connectors (antennas sold separately) - full 256-bit AES encryption technology - and an optional DC power input in lieu of the daisy-chain AC power output on standard ANX4 models The ANX4 includes a 19 rackmount - BNC bulkhead adapters - BNC cables - and an Ethernet cableNote this purchase includes the ANX4 hardware receiver only It does not include any licenses for wireless audio channels

Features: Requires ANX4 Channel License, Up to 16 Axient and 24 ULX-D Channels, Scalable Channel Count, Compact Single Rack Space, Streamlined Design with 4 Antenna Jacks, Network and Dante Compatible, ULX-D HD Mode, 256-Bit AES Encryption, Controllable via WWB and ShureCloud, Alternate DC Power Input Connector, Includes BNC Cables and Ethernet Cable

Wireless Technology: Digital 1.9 GHz / Digital VHF

Diversity: Yes - True Diversity

RF Frequency Band: 174 to 2000 MHz

RF Channel Scanning: Auto-Scan

Encryption: AES 256

Built-In Recorder: No

Timecode Support: No

Mobile App Compatible: No

Receiver Type: 1x Rackmount (19-inch )

Mounting Options: Rackmount (with Included Hardware - 1 U)

Antenna: 4x BNC Port (No Antenna Included)

Number of Audio Channels: 24

Audio I/O: 1x 1/4-inch TRS Headphone Output

Slot-Mount I/O Adapters: No

Network I/O: 2x RJ45 (Ethernet)2x RJ45 (Dante)

USB/Lightning Connectivity: 1x USB-A Female

Display: Multi-Segment LED Meters

Power Requirements: AC Input - DC Input

Included Transmitters: No Transmitters Included

Microphone Type: No Microphone Included

Included Charging Case: No

AC/DC Power Adapter: No

Environmental Resistance: No
