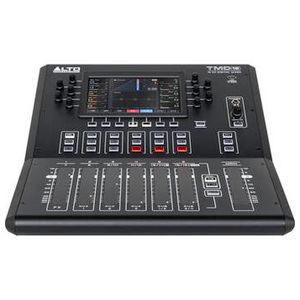

Alto Professional TMD16 Compact 16-Channel Mixer w

Alto Professional TMD16 Compact 16-Channel Mixer with Bluetooth and USB

Features: Bluetooth Remote Control Capability, USB & Bluetooth Audio Connectivity, 7-inch Full-Color Display Screen, Built-In EQ, Compression & Effects, Scene Presets for Quick Recall, Hands-On Tactile Control, For Live, Rehearsal, and Worship, Durable All-Metal Chassis, 100mm Capacitive-Touch Faders

Max I/O Capacity: 16x Input / 12x Output

Number of Analog Input Channels: 16 (8 Mono / 4 Stereo)

Number of Mic Preamps: 10

Number of Analog Output Channels: 12

Mix Routing: 1x Stereo Bus4x Mono Aux Send4x Mono Subgroup

Groups: 4x Subgroup

Presets: No

Display: 7-inch

Faders & Level Adjustment: 6x 3.9-inch / 100 mm Channel Fader(Touch Sensitive)1x 3.9-inch / 100 mm Master Fader

Meters: 7x 18-Segment LED

Gain/Trim Range: Line/Mic:50 dB

Input Polarity: Fixed

Dynamic Processing: Compressor - Limiter

EQ: Input Channels:3-Band Parametric Outputs:7-Band Graphic

EQ Parameters: Shelf:±12 dB at 20 Hz to 20 kHz Peak:±12 dB at 20 Hz to 20 kHz

Graphic EQ: 7-Band

Filters: Input Channels:Low-Pass Input Channels:High-Pass

Solo/Mute: Solo - Mute per Input Channel

Built-In Effects: 16x

Audio Delay: No

Automatic Mic Mixing: No

Sample Rates: 48 kHz

Bit Depth: 24-Bit

Frequency Response: 20 Hz to 20 kHz

Max Input Level: Mic/Line:+18 dBu

I/O Impedance: Output:100 Ohms

THD: 0.5%

Signal Generator: Yes

Analog Inputs: 8x Combo XLR-1/4-inch Input2x XLR 3-Pin Input4x 1/4-inch Input2x RCA Input1x 1/8-inch / 3.5 mm Stereo Input

Analog Outputs: 1x 1/4-inch Headphone Output10x XLR Output2x 1/4-inch Output

Phantom Power: +48 V

Digital I/O: 1x RJ45

MIDI I/O: No

USB I/O: 1x USB-B1x USB-C

USB I/O Capacity: 2x Input / 2x Output

Expansion Ports: No

Wireless: Bluetooth*Built-In

External Display I/O: No

OS Compatibility: Windows / macOS

Mobile Device Compatibility: Android Smartphone Android Tablet iPad iPhone

Input Power: 100 to 240 VAC - 50 / 60 Hz

Rack Mountable: No

Dimensions: 16.9 x 15 x 4.3-inch / 42.9 x 38.1 x 10.9 cm

Weight: 12 lb / 5.4 kg
