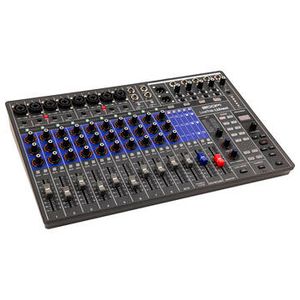

Zoom LiveTrak L12next 14x4 Digital Mixer and Recor

Combining the powers of a digital mixer and multitrack recorder with analog-style control - the Zoom LiveTrak L12next is a 12-channel digital mixer with integrated 14-channel recording and 14x4 USB-C interface functionality Sporting five independent output mixes for five monitoring destinations - the L12next is ideal for live performances and streamingEach mono input channel features a 60mm fader - three multifunctional encoder knobs for analog-style gain - EQ - compression - panning - or FX send control - mute - solo - and pad control 48V phantom power can be activated in groups of four Hi-Z mode can be switched on for each mono channel for passive instrument inputs like guitars and electric keyboards An OLED screen streamlines digital control The recorder can capture 14 tracks in up to 24-bit / 96 kHz - recording to either the internal memory or an SD card - and stereo master bus capture can be performed in crisp 32-bit float 16 onboard FX keep things lively and creative - with useful reverbs and delays that are ideal for live rehearsals and performances The mixer also supports wireless mix control via the L12next Control app

Features: 60mm Faders, 3 Multifunction Knobs, 3-Band EQ, Compressor, Pan, Mute & Solo, 16 Onboard FX, Wireless Mix Control, 14-Track 24-Bit / 96 kHz Recorder, 32-Bit Float Stereo Master Bus Capture, 14x4 USB-C Audio Interface Function, Ideal for Live Performances & Streaming, 8 x XLR-1/4-inch Combo Mic/Line/Hi-Z Inputs, Two Stereo 1/4-inch Line Input Channels, +70 dB of Gain, Pad & 48V Phantom Power

Max I/O Capacity: 14x Input / 6x Output

Number of Analog Input Channels: 12 (8 Mono / 2 Stereo)

Number of Mic Preamps: 8

Number of Analog Output Channels: 6

Mix Routing: 8x Mono Bus2x Stereo Bus1x FX Return

Groups: No

Presets: No

Display: OLED

Faders & Level Adjustment: 12 Fader34 Knob

Meters: LED

Gain/Trim Range: 16 to 60 dB Hi-Z:0 to 44 dB

Input Pad: -20 dB (Mono Channels)

Input Polarity: Fixed

Dynamic Processing: Compressor

EQ: 3-Band Semi-Parametric

Graphic EQ: No

Solo/Mute: Solo - Mute per Input Channel

Audio Delay: No

Automatic Mic Mixing: No

Sample Rates: Up to 96 kHz

Bit Depth: Audio Streaming:Up to 24-BitMultitrack Record:32-Bit

Frequency Response: 20 Hz to 20 kHz (at 44.1 kHz - -1 dB) 20 Hz to 40 kHz (at 96 kHz - -3 dB)

Max Input Level: Combo XLR-1/4-inch Mic/Line Input:-2 dBu 1/4-inch TRS Line Input:+14 dBu

I/O Impedance: Combo XLR-1/4-inch Hi-Z/Main/Mic Input:4.6 Kilohms (Mic/Line) 1 Megohm (Hi-Z) Main Output:200 Ohms Monitor Output:55 Ohms

Signal Generator: No

Analog Inputs: 8x Combo XLR-1/4-inch TRS Balanced/Unbalanced Mic/Line/Hi-Z Input4x 1/4-inch TRS Balanced Line Input (2 Stereo Pairs)

Analog Outputs: 2x XLR 3-Pin Balanced Main Output (1 Stereo Pair)5x 1/4-inch TRS Stereo Monitor Output

Phantom Power: +48 V - Selectable On/Off

Digital I/O: No

MIDI I/O: No

USB I/O: USB-C

USB I/O Capacity: 14x Input / 4x Output

Other I/O: 1x 1/4-inch TRS Footswitch/Control Input

Expansion Ports: No

Wireless: Bluetooth*Built-In

External Display I/O: No

Max Multitrack Recording: 14 Tracks

Media Support: SDHC - USB Drive

Max Media Storage Capacity: 1000 GB

File Format Support: WAV

OS Compatibility: Windows / macOS

Input Power: 5 VDC

Rack Mountable: Yes

Dimensions: 17.5 x 11.2 x 2.9-inch / 44.5 x 28.5 x 7.3 cm

Weight: 5.3 lb / 2.4 kg
