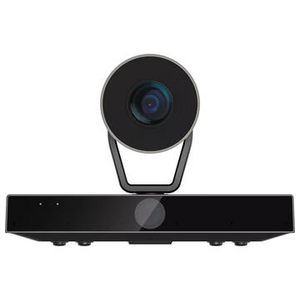

Nearity V520D Dual-Lens PTZ Conference Camera

Features: Picture in Picture (PiP) Function, Dynamic Auto Framing, Speaker Tracking, Auto-Tracking, H.264/MJPEG Video Compression, 120° Panoramic Lens Field of View, 80° PTZ Lens Field of View, Simultaneous USB, HDMI, SDI & IP Output, Capture up to 1080p Resolution, Dual-Lens PTZ Camera with Smart AI, Sony CMOS Sensor, 10x Optical Zoom

Image Sensor: 1/2.9-inch -Type CMOS

Sensor Resolution: Effective: 5 Megapixel

Focus Control: AutofocusManual Focus

Shutter Type: Electronic Rolling Shutter

Precise Scan Rate Control: No

Flip / Mirror Support: Image Flip - Mirror (Vertical)

White Balance: Presets: Auto

Optical Zoom Ratio: 10x

Max Digital Zoom: 2x

Field of View: Horizontal: 69°Vertical: 40°Diagonal: 80°

Video Output: SDI/BNC / HDMI / USB1920 x 1080 at 30.00 fps

IP Streaming: H.264/MJPEG 1920 x 1080 at 30p

Presets: 255

Pan/Tilt: Pan: 75 degrees at 17 to 100 degrees/s Tilt: 30 degrees at 0.7 to 2.8 degrees/s

Tally Light: No

Supported Control Protocols: IRRS-232RS-485

Automatic Follow and Framing: Auto Framing and Tracking

Wireless: IR*Built-In

Video I/O: 1 x HDMI (Unspecified Signal) Output1 x RJ45 (NDI) Output

Audio I/O: 1x 1/8-inch / 3.5 mm TRS Stereo Line Input 1x 1/8-inch / 3.5 mm TRS Stereo Line Output

Other I/O: 1x USB-B (Firmware) Input (Shared with Video Output)1x USB-C (Firmware) Input (Shared with Video Output)1x Mini-DIN 8-Pin (RS-232) Control Input1x Mini-DIN 8-Pin (RS-232) Control Output1x Block 3-Pin (RS-485) Control

Built-In Microphone: No

Built-In Speaker: No

Power I/O: 1x Barrel

Mounting: 1x 1/4-inch -20 Female for Bracket/Desktop/Tripod/Wall

OS Compatibility: Windows / macOS / Linux

Dimensions (W x H x D): 6 x 6.5 x 6-inch / 15.2 x 16.5 x 15.2 cm
